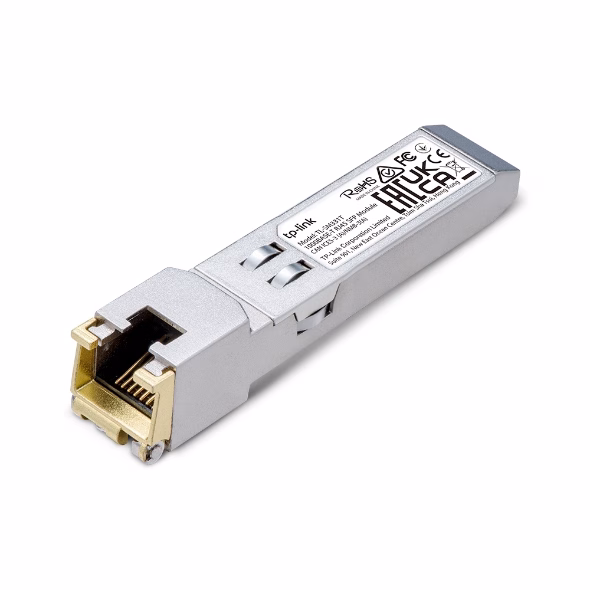

TP-Link TL-SM331T 1000BASE-T RJ45 SFP Module

Description

TP-Link TL-SM331T 1000BASE-T RJ45 SFP Module

– Support 1000BASE-T Operation in Host Systems

– Support TX Disable function

– For 100m Reach Over UTP Cat 5e or above Cable

– Hot-Pluggable SFP Footprint Features

– Commercial Product Operating Temperature Range: 0-70°C

– Compliant with IEEE Std 802.3-2002

– Fully Metallic Enclosure for Low EMI

– Low Power Dissipation (0.5 W Typical, 0.8 W Max)

PACKAGE CONTENTS
Package Contents
– 1000BASE-T RJ45 SFP Module TL-SM331T

– Installation Guide

HARDWARE FEATURES
Hot Swappable Yes

TRANSCEIVER
Standards and Protocols IEEE 802.3-2002
Power Supply 3.3V
Max. Cable Length 100m (Cat 5e or above)
Data Rate 1.25 Gbps
Port Type 1x 1000 Mbps RJ45 Port
Safety & Emission FCC, CE
Environment Operating Temperature: 0–70 ℃ (32–158 ℉)
Storage Temperature: -40–85 ℃ (-40–185 ℉)
