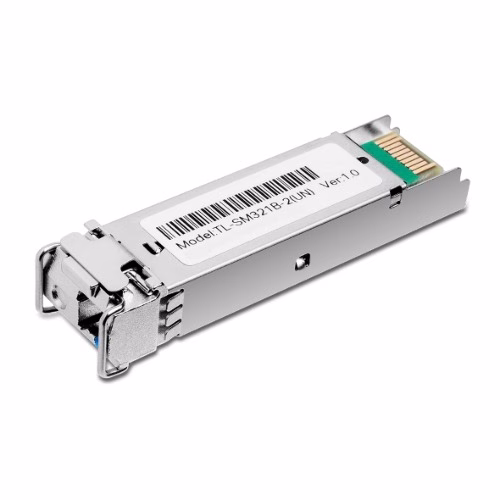

TP-Link 1000Base-BX WDM Bi-Directional SFP Module TL-SM321B-2

Description

TP-Link 1000Base-BX WDM Bi-Directional SFP Module (TL-SM321B-2)

– Adopts the latest standard 1000Base-BX

– Up to 2 km transmission distance in 9/125 μm SMF (Single-Mode Fiber)

– Compatible with Small Form Pluggable Multi-Source Agreement (SFP-MSA)

– Supports Digital Diagnostic Monitoring (DDM)

– Supports Hot Swappable

HARDWARE FEATURES
DDM Yes
SFP-MSA Yes
Hot Swappable Yes
MEDIA CONVERTER & MODULE
Standards and Protocols IEEE 802.3z, TCP/IP
Wave Length Tx: 1310 nm
Rx: 1550 nm
Power Supply 3.3V
Safety & Emission FCC, CE
Cabel Single-Mode Fiber
Fiber Type 9/125 μm Single-Mode
Max. Cable Length 10 KM
Data Rate 1.25 Gbps
Port Type LC Simplex
Environment Operating Temperature: 0–70 °C (32–158 °F)
Storage Temperature: -40–85 °C ( -40–185 °F)
Operating Humidity: 10–90% RH, Non-Condensing
Storage Humidity: 5–90% RH, Non-Condensing
