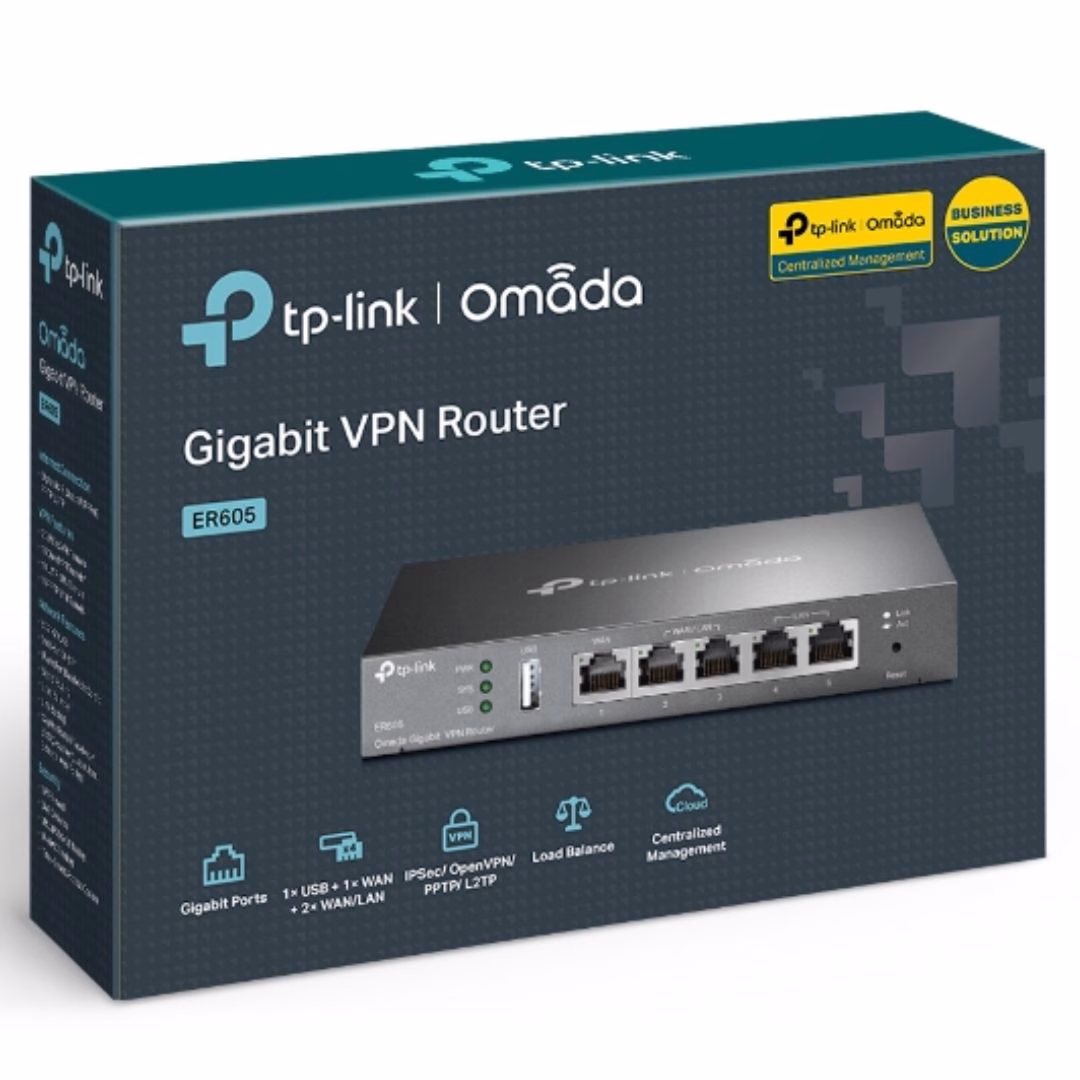

TP-Link TL-ER605 (TL-R605) SafeStream Gigabit Multi-WAN VPN Router (Omada)

Description

TP-Link TL-ER605 (TL-R605) SafeStream Gigabit Multi-WAN VPN Router PPPoE 1 WAN 3 Changeable WAN/LAN Ports 10BASE-T, Centralised Cloud, OMADA

– Integrated into Omada SDN: Zero-Touch Provisioning (ZTP)?, Centralized Cloud Management, and Intelligent Monitoring.
– Centralised Management: Cloud access and Omada app for ultra convenience and easy management.
– Five Gigabit Ports: High-speed wired connectivity.
– Up to 4 WAN Ports: 1 gigabit WAN port and 3 gigabit WAN/LAN ports optimize bandwidth usage.
– Highly Secure VPN: Supports up to 20x LAN-to-LAN IPsec, 16x OpenVPN*, 16x L2TP, and 16x PPTP VPN connections.
– Abundant Security Features: Advanced firewall policies, DoS defence,IP/MAC/URL filtering, and more security functions protect your network and data.

HARDWARE FEATURES
Standards and Protocols
– IEEE 802.3, 802.3u, 802.3ab, IEEE 802.3x, IEEE 802.1q
– TCP/IP, DHCP, ICMP, NAT, PPPoE, NTP, HTTP, HTTPS, DNS, IPSec, PPTP, L2TP, OpenVPN, SNMP
Interface
– 1 Fixed Gigabit WAN Port
– 1 Fixed Gigabit LAN Port
– 3 Changeable Gigabit WAN/LAN Ports
Network Media
– 10BASE-T: UTP category 3, 4, 5 cable (Max 100m)
EIA/TIA-568 100Ω STP (Max 100m)
– 100BASE-TX: UTP category 5, 5e cable (Max 100m)
EIA/TIA-568 100Ω STP (Max 100m)
– 1000BASE-T: UTP category 5, 5e, 6 cable (Max 100m)
Button Reset Button
Power Supply External 9V/0.85A DC Adapter
Flash SPI 16MB
DRAM 128 MB
LED PWR, SYS, WAN, LAN
Dimensions ( W x D x H ) 6.2 x 4.0 x 1.0 in (158 x 101 x 25mm)

PERFORMANCE
Concurrent Session 25,000
IPsec VPN Throughput 41.5 Mbps
BASIC FUNCTIONS
WAN Connection Type
– Static/Dynamic IP
– PPPoE
– PPTP
– L2TP
DHCP
– DHCP Server/Client
– DHCP Address Reservation
– Multi-net DHCP*
– Multi-IP Interfaces*

*Multi-IP Interfaces and Multi-Net DHCP are supported only in Controller Mode
MAC Clone Modify WAN/LAN MAC Address*
