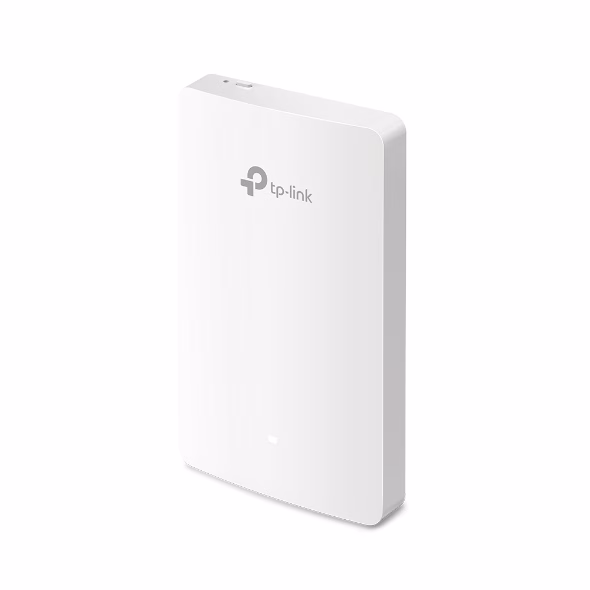

TP-Link EAP615-Wall Omada AX1800 Wall Plate WiFi 6 Access Point

Description

TP-Link EAP615-Wall AX1800 Wall Plate WiFi 6 Access Point

– Superior WiFi 6 Speeds: Simultaneous 574 Mbps on 2.4 GHz and 1201 Mbps on 5 GHz totals 1775 Mbps Wi-Fi speeds.**

– High-Performance Connectivity: Guarantee higher network efficiency and lower latency.

– Four Gigabit Ports: 4 Gigabit Ethernet ports (1Xuplink + 3Xdownlink), with one downlink port supporting PoE pass-through to provide power for wired devices.

– Centralised Management: Integrates into Omada SDN for cloud access and remote management.

– Secure Guest Network: Along with multiple authentication options (SMS/Facebook Wi-Fi/ Voucher, etc.) and abundant wireless security technologies.

– Easy Installation and PoE Support: Easy-to-install design, compatible with 86 mm & EU & US standard junction box, and 802.3af/at PoE support.

HARDWARE FEATURES
Interface
– Uplink: 1X10/100/1000 Mbps Ethernet Port

– Downlink: 3X10/100/1000 Mbps Ethernet Ports (One port supports PoE OUT. The PoE OUT feature requires 802.3at PoE+ input.The maximum power output for POE pass-through is 13 W (EU version) or 12 W (US version), based on laboratory testing.)

Physical Security Lock Yes
Button Reset
Power Supply 802.3af/at PoE
Power Consumption EU: 10W (802.3at PoE, PoE Out off)
US: 11.5W (802.3at PoE, PoE Out off)
Dimensions 143 X86 X20 mm
Antenna 2 Dual-Band Antennas

– 2.4 GHz: 2X3 dBi

– 5 GHz: 2X4 dBi
Mounting Wall Plate Mounting

WIRELESS FEATURES
Wireless Standards IEEE 802.11ax/ac/n/g/b/a
Frequency 2.4 GHz and 5 GHz
Signal Rate
– 5 GHz: Up to 1201 Mbps

– 2.4 GHz: Up to 574 Mbps

MANAGEMENT
Omada App Yes
Centralized Management
– Omada Hardware Controller (OC300)

– Omada Hardware Controller (OC200)

– Omada Software Controller
Cloud Access Yes (Through OC300, OC200, or Omada Software Controller)
