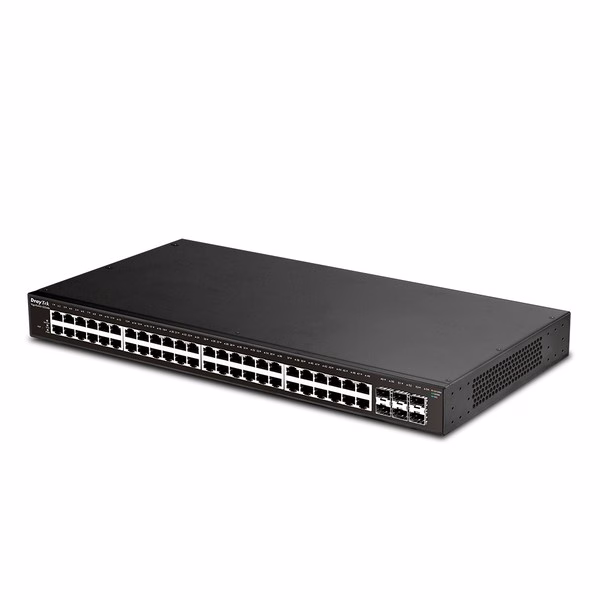

VigorSwitch G2540xs

Description

VigorSwitch G2540xs

• Layer 2+ Managed 10GbE Switch
  • 48 x GbE ports
  • 6 x 10GbE SFP+ slots
  • Up to 216 Gbps switching capacity
• 802.1q tagged VLANs (MAC address, and protocol)
• Voice and Surveillance VLANS with QoS (OUI Mode) providing improved call and video quality
• ONVIF (Open Network Video Interface Forum) compliant
• QoS with 8 queues for traffic prioritisation
• Enterprise-Level security features
  • 802.1x Port Security, ACL, IP Source Guard and DHCP Snooping
  • Access Control (IPv4, IPv6 and MAC address)
• Support IPv6 with MLD Snooping, IPv6 ACL, and IPv6 DNS Resolver
• Authentication by local database, multiple RADIUS, and TACACS+ server
• IEEE 802.3az (Energy-Efficient Ethernet) Compliant
• Support SNMP v1/v2c/v3, RMON, and Syslog for network monitoring
• Port Mirroring & Link Aggregation
• 1 x RJ-45 console port
• Compliant with Central Switch Management features of DrayTek Vigor devices for simplified network management
• Compliant with VigorConnect free software for local network management
• Supports VigorACS 3 Central Management Software for remote management

DrayTek VigorSwitch G2540xs is a Layer 2+ Managed 10 Gbps switch. It has 48x Gigabit Ethernet ports and 6 x SFP+ 10Gbps Fiber links. Supporting advanced Layer 3 features, DHCP Server and VLAN Routing, VigorSwitch G2540xs improves network efficiency and helps your LAN network to work continuously even when the gateway is offline, which is ideal to be placed as the core switch in SME/SMB.

1 – Power Socket

2 – Reset Button

3 – LED Indicator

4 – 48x Gigabit Ethernet

5 – 6x SFP+ Port

6 – Console Port

Advanced Layer 2+ Features
DHCP Server & VLAN Routing

Improving LAN Network Sustainability and Efficiency,
with or without a Router
In a large LAN network, much traffic doesn’t go to Internet, but to the servers in LAN. For example, IP cameras store videos to NVR, IP phones register to PBX, clients access to file server, etc.

L2+ switch with DHCP server and VLAN routing functionalities, as the device receiving traffic before the router, is ideal to share the loading of your router and to help your LAN network to work continuously even when the router is offline.

As a DHCP server, VigorSwitch assigns dynamic IP addresses for up to 8 VLANs. With VLAN routing, VigorSwitch supports up to 512 routes.

Bind IP to MAC

Reserve an IP Address for an Important Device
As a DHCP Server, layer 2+ VigorSwitch helps reserving IP addresses for your important devices that most users will access frequently.
