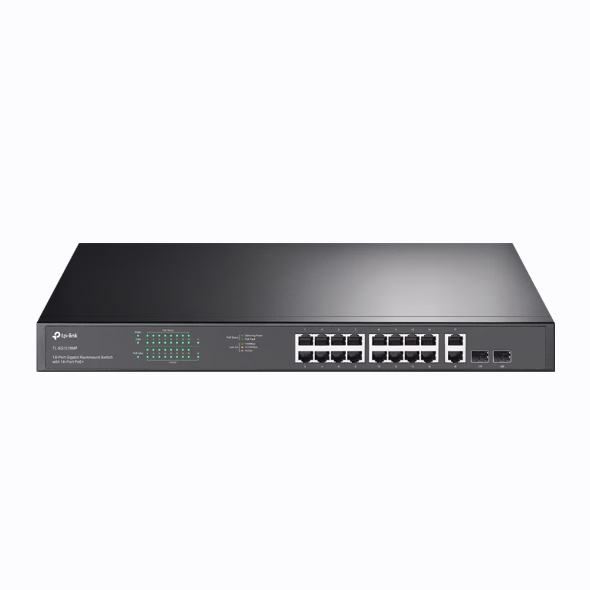

TP-Link TL-SG1218MP 18-Port Gigabit Rackmount Switch

Description

TP-Link TL-SG1218MP 18-Port Gigabit Rackmount Switch with 16 PoE+

– 16x gigabit PoE+ RJ45 ports, 2x gigabit non-PoE RJ45 ports, and 2x combo gigabit SFP slots
– High PoE power budget with up to 30 W for each PoE port and 250 W for all PoE ports*
– Working with IEEE 802.3af/at compliant PDs
– Plug and play, with no configuration and installation needed
– 802.1p/DSCP QoS enable smooth latency-sensitive traffic
– Durable metal casing and professional heat dissipation design ensure a wide operating temperature range (0-50 ? )

HARDWARE FEATURES
Standards and Protocols IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x, IEEE 802.3af, IEEE 802.3at, IEEE 802.1q, IEEE 802.1p
– Interface 16x PoE+ gigabit RJ45 ports
– 2x gigabit non-PoE RJ45 ports
– 2x combo gigabit SFP slots
Network Media
– 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)
– EIA/TIA-568 100?STP (maximum 100m)
– 100BASE-TX: UTP category 5, 5e cable (maximum 100m)
– EIA/TIA-568 100?STP (maximum 100m)
– 1000BASE-T: UTP category 5, 5e, 6 or above cable (maximum 100m)
– EIA/TIA-568 100?STP (maximum 100m)
– 1000BASE-X MMF, SMF
Fan Quantity 2
Physical Security Lock Yes
Power Supply 100-240 VAC, 50/60 Hz
PoE+ Ports(RJ45)
– Standard: 802.3at/802.3af compliant
– PoE Ports: Ports 1-16
– PoE Power Budget: 250 W
Dimensions ( W x D x H ) 17.3 x 7.1 x 1.73 in (440 x 180 x 44 mm)
Mounting Rack Mountable
Max Power Consumption
– 21.4 W (220/50 Hz. no PD connected)
– 286.64 W (220/50 Hz. with 250 W PD connected)
Max Heat Dissipation
– 72.97 BTU/h (no PD connected)
– 977.44 BTU/h (with 250 W PD connected)

PERFORMANCE
Switching Capacity 36 Gbps
Packet Forwarding Rate 26.78 Mbps
MAC Address Table 8K
Packet Buffer Memory 4.1 Mbit
Advanced Functions
– Compatible With IEEE 802.3af/at Compliant PDs
– 802.1p/DHCP QoS
– Mac Address Auto-Learning And Auto-Aging
– IEEE802.3x Flow Control For Full-Duplex Mode And Backpressure For Half-Duplex Mode
Jumbo Frame 10 KB
