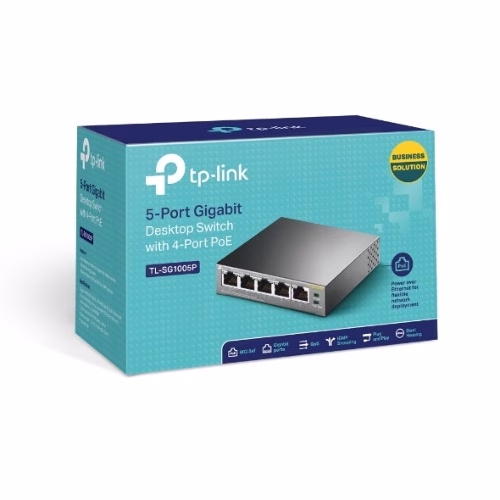

TP-Link TL-SG1005P 5-Port Gigabit Desktop Switch

Description

TP-Link TL-SG1005P 5-Port Gigabit Desktop Switch with 4-Port PoE 56W

5 10/100/1000Mbps RJ45 ports
With four PoE ports, transfers data and power on one single cable
Working with IEEE 802.3af compliant PDs, expands home and office network
802.1p/DSCP QoS enable smooth latency-sensitive traffic
Supports PoE Power up to 15.4W for each PoE port
Supports PoE Power up to 56W for all PoE ports
Requires no configuration and installation

HARDWARE FEATURES
– Interface 5x 10/100/1000Mbps RJ45 Ports
– AUTO Negotiation
– AUTO MDI/MDIX
Network Media
– 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)
– EIA/TIA-568 100?STP (maximum 100m)
– 100BASE-TX: UTP category 5, 5e cable (maximum 100m)
– EIA/TIA-568 100?STP (maximum 100m)
– 1000BASE-T: UTP category 5, 5e, 6 or above cable (maximum 100m)
– EIA/TIA-568 100?STP (maximum 100m)
Fan Quantity Fanless
External Power Supply External Power Adapter (Output: 53.5 VDC / 1.31 A)
Packet Forwarding Rate 7.44 Mpps
PoE Ports (RJ45)
– Standard: 802.3 af/at compliant
– PoE Ports: Ports 1-4
– Power Supply: 65 W
Mac Address Table 2K
Jumbo Frame 16 KB
Switching Capacity 10 Gbps
Dimensions ( W x D x H ) 3.9×3.9×1.0 in (99.8x98x25 mm)
Max Power Consumption
– 4.29 W (220/50 Hz. no PD connected)
– 74.24 W (220/50 Hz. with 65 W PD connected)
Max Heat Dissipation
– 14.63 BTU/h (no PD connected)
– 253.16 BTU/h (with 65 W PD connected)

SOFTWARE FEATURES
Advanced Features
– Compatible With IEEE 802.3af/at Compliant PDs
– Mac Address Auto-Learning And Auto-Aging
– IEEE 802.3x Flow Control
– 802.1p/DSCP QoS
– IGMP Snooping
