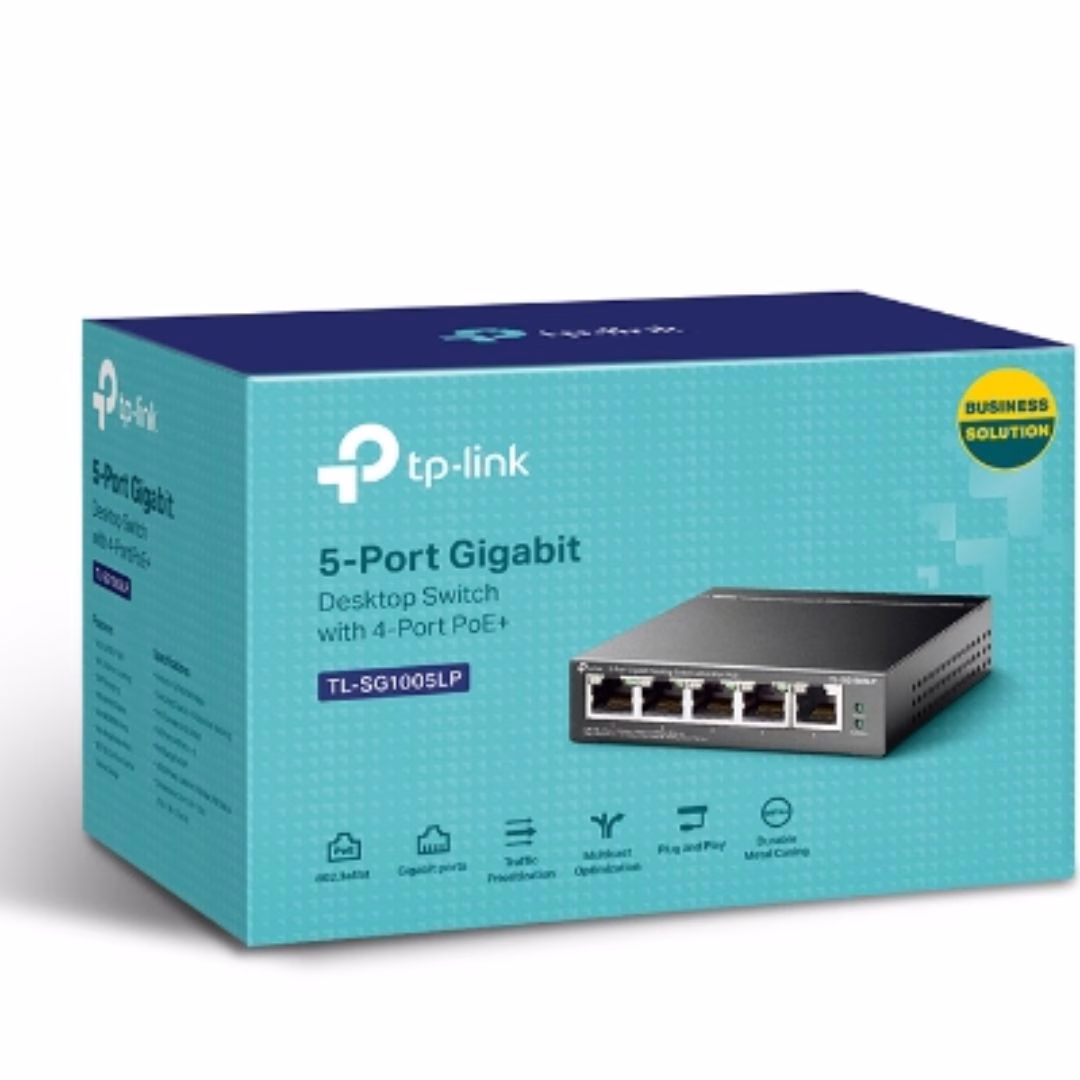

TP-Link TL-SG1005LP 5-Port Gigabit Desktop Switch

Description

TP-Link TL-SG1005LP 5-Port Gigabit Desktop Switch with 4-Port PoE+

– 5x 10/100/1000 Mbps RJ45 ports
– With four PoE+ ports, transfers data and power on one single cable
– Works with IEEE 802.3af/at compliant PDs
– 802.1p/DSCP QoS enable smooth latency-sensitive traffic
– Supports PoE Power up to 30 W for each PoE port
– Supports PoE Power up to 40 W for all PoE ports*
– Plug and play, no configuration and installation required

HARDWARE FEATURES
– Interface 5x 10/100/1000Mbps RJ45 Ports
– AUTO Negotiation
– AUTO MDI/MDIX
Network Media
– 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)
– EIA/TIA-568 100?STP (maximum 100m)
– 100BASE-TX: UTP category 5, 5e cable (maximum 100m)
– EIA/TIA-568 100?STP (maximum 100m)
– 1000BASE-T: UTP category 5, 5e, 6 or above cable (maximum 100m)
– EIA/TIA-568 100?STP (maximum 100m)
Fan Quantity Fanless
External Power Supply External Power Adapter (Output: 53.5 VDC / 0.81 A)
Packet Forwarding Rate 7.44 Mpps
PoE Ports (RJ45)
– Standard: 802.3 af/at compliant
– PoE Ports: Ports 1-4
– Power Supply: 40 W
Mac Address Table 2K
Jumbo Frame 16 KB
Switching Capacity 10 Gbps
Dimensions ( W x D x H ) 3.9×3.9×1.0 in (99.8x98x25 mm)
Max Power Consumption
– 4.12 W (220/50 Hz. no PD connected)
– 47.5 W (220/50 Hz. with 40 W PD connected)
Max Heat Dissipation
– 14.05 BTU/h (no PD connected)
– 161.98 BTU/h (with 40 W PD connected)

SOFTWARE FEATURES
Advanced Features
– Compatible With IEEE 802.3af/at Compliant PDs
– Mac Address Auto-Learning And Auto-Aging
– IEEE 802.3x Flow Control
– 802.1p/DSCP QoS
– IGMP Snooping
Transfer Method Store-And-Forward

OTHERS
Certification FCC, CE, RoHS
Package Contents
– TL-SG1005LP
– Power Adapter
– Installation Guide
Environment
– Operating Temperature: 0-40 ? (32-104 ?);
– Storage Temperature: -40-70 ? (-40-158 ?)
– Operating Humidity: 10-90% RH non-condensing
– Storage Humidity: 5-90% RH non-condensing
