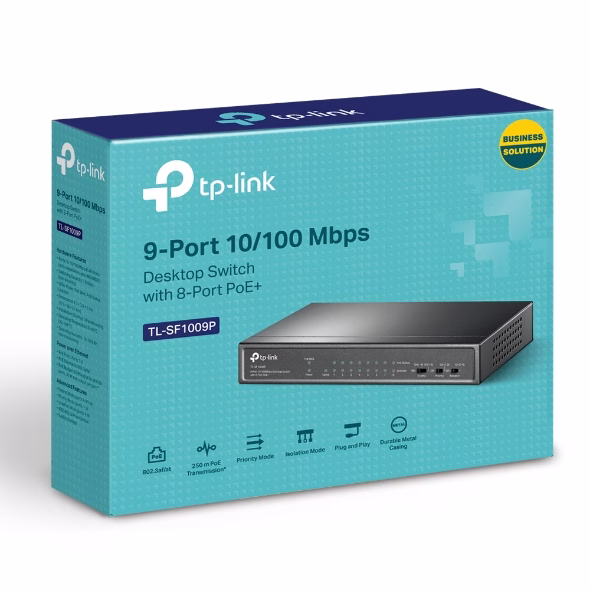

TP-Link TL-SF1009P 9-Port 10/100Mbps Desktop Switch

Description

TP-Link TL-SF1009P 9-Port 10/100Mbps Desktop Switch with 8-Port PoE+

– 9x 10/100 Mbps RJ45 ports
– 8x PoE+ ports transfer data and power on individual cables
– Works with IEEE 802.3af/at compliant PDs
– Supports PoE Power up to 30 W for each PoE port
– Supports PoE Power up to 65 W for 8 PoE ports*
– Up to 250 m data and power transmitting range under Extend Mode**
– Priority Mode ensures high priority of ports 1-2 to guarantee the quality of sensitive application
– Isolation Mode allows one-click client traffic separation for higher security and performance
– Plug and play with no configuration required

HARDWARE FEATURES
– Interface 9x 10/100 Mbps RJ45 Ports (8x 10/100 Mbps 802.3af/at PoE+ ports)
– AUTO Negotiation
– AUTO MDI/MDIX
Network Media
– 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)
– EIA/TIA-568 100?STP (maximum 100m)
– 100BASE-TX: UTP category 5, 5e cable (maximum 100m)
– EIA/TIA-568 100?STP (maximum 100m)
Fan Quantity Fanless
Physical Security Lock Yes
External Power Supply External Power Adapter (Output: 53.5VDC / 1.31A)
Packet Forwarding Rate 1.3392 Mpps
PoE Ports (RJ45)
– Standard: 802.3 af/at compliant
– PoE Ports: Ports 1-8
– Power Supply: 65 W
Mac Address Table 2K
Jumbo Frame 2 KB
Switching Capacity 1.8 Gbps
Dimensions ( W x D x H ) 6.7 x 3.9 x 1.1 in (171 x 98 x 27 mm)
Max Power Consumption
– 3.6 (220/50 Hz. no PD connected)
– 77.08 (220/50 Hz. with 65 W PD connected)
Max Heat Dissipation
– 12.28 BTU/h (no PD connected)
– 262.84 BTU/h (with 65 W PD connected)

SOFTWARE FEATURES
Transmission Method Store-And-Forward
Advanced Functions
– Compatible With IEEE 802.3af/at Compliant PDs
– Extend Mode Button (Ports 1-4 and Ports 1-8, Up to 250 m PoE power supply and data transmission)
– Priority Mode Button (Ports 1-2)
– Isolation Mode Button (Ports 1-8)
– Mac Address Auto-Learning and Auto-Aging
– IEEE802.3x Flow Control For Full-Duplex Mode And Backpressure for Half-Duplex Mode
