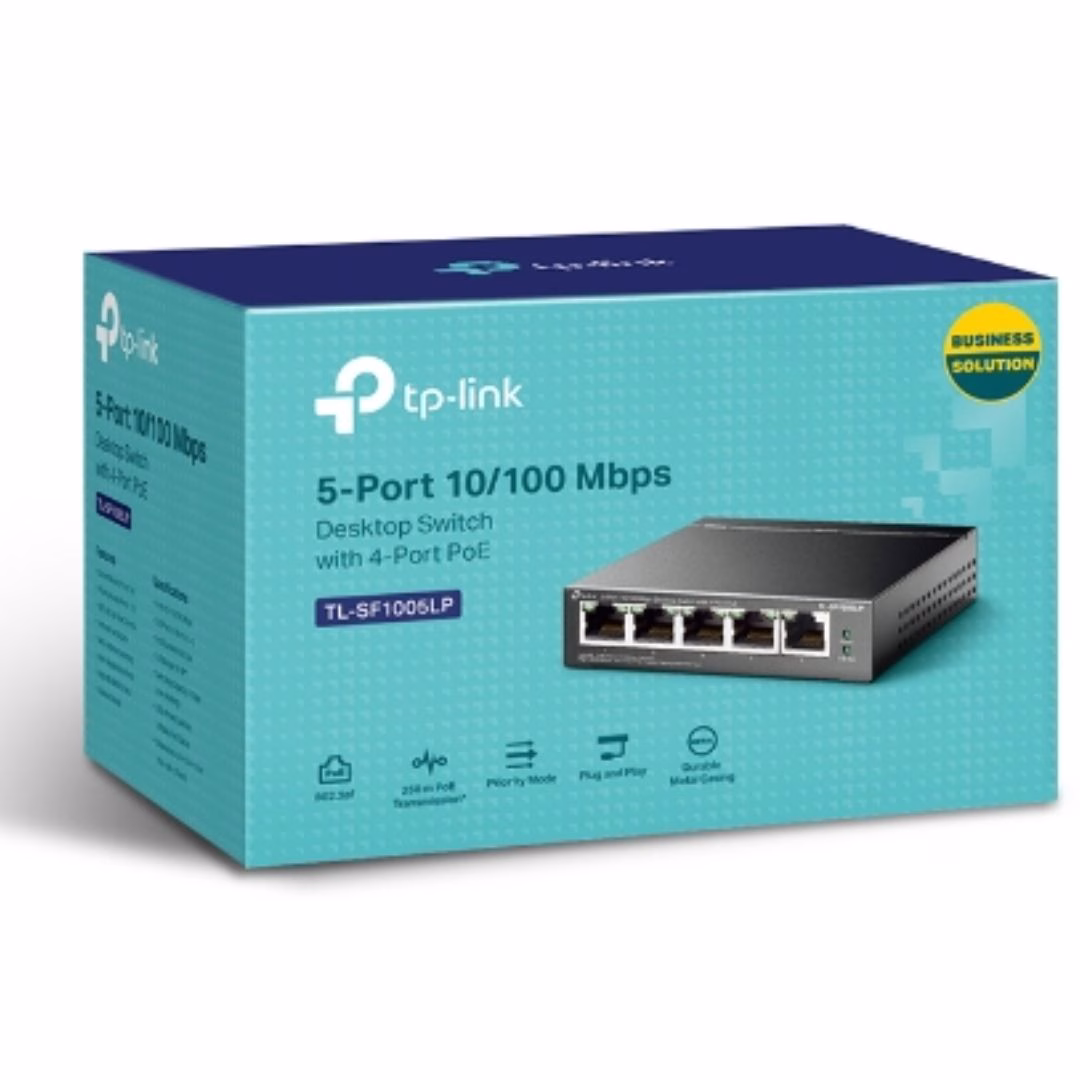

TP-Link TL-SF1005LP 5-Port 10/100Mbps Desktop Switch

Description

TP-Link TL-SF1005LP 5-Port 10/100Mbps Desktop Switch with 4-Port PoE

– 5x 10/100 Mbps RJ45 ports
– 4x PoE ports transfer data and power on individual cables
– Works with IEEE 802.3af compliant PDs
– Up to 250 m data and power transmitting range under Extend Mode**
– Priority Mode ensures high priority of ports 1-2 to guarantee the quality of sensitive application
– Supports PoE Power up to 41 W for all PoE ports*
– Plug and play with no configuration required

HARDWARE FEATURES
– Interface 5x 10/100 Mbps RJ45 Ports (Ports 1-4 support 802.3af PoE)
– AUTO Negotiation
– AUTO MDI/MDIX
Network Media
– 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)
– EIA/TIA-568 100?STP (maximum 100m)
– 100BASE-TX: UTP category 5, 5e cable (maximum 100m)
– EIA/TIA-568 100?STP (maximum 100m)
Fan Quantity Fanless
Physical Security Lock Yes
External Power Supply External Power Adapter (Output: 53.5 V DC / 0.81 A)
Packet Forwarding Rate 0.744 Mpps
PoE Ports (RJ45)
– Standard: 802.3 af compliant
– PoE Ports: Ports 1-4
– Power Supply: 41 W
Mac Address Table 2K
Jumbo Frame 2 KB
Switching Capacity 1 Gbps
Dimensions ( W x D x H ) 3.9×3.9×1.0 in (100x98x25 mm)
Max Power Consumption
– 1.9 W (220 V / 50 Hz, no PD connected)
– 47 W (220 V / 50 Hz, with 41 W PD connected)
Max Heat Dissipation
– 6.48 BTU/h(no PD connected)
– 160.27 BTU/h(with 41 W PD connected)

SOFTWARE FEATURES
Transmission Method Store-And-Forward
Advanced Functions
– Compatible With IEEE 802.3af/at Compliant PDs
– Extend Mode Button (Ports 1-4)
– Priority Mode Button (Ports 1-2)
– Mac Address Auto-Learning And Auto-Aging
– IEEE802.3x Flow Control For Full-Duplex Mode and Backpressure for Half-Duplex Mode
OTHERS
Certification FCC, CE, RoHS
Package Contents
– TL-SF1005LP
– Power Adapter
– Installation Guide
Environment
– Operating Temperature: 0-40 ? (32-104 ?)
– Storage Temperature: -40-70 ? (-40-158 ?)
– Operating Humidity: 10-90% RH non-condensing
– Storage Humidity: 5-90% RH
