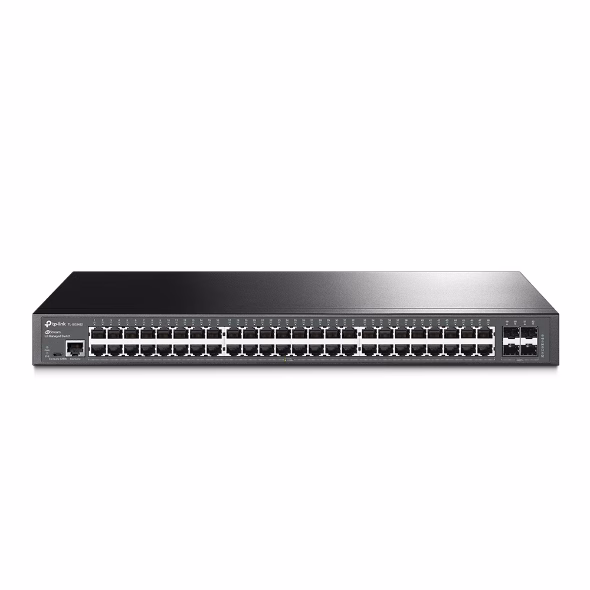

TP-Link SG3452 Omada 48-Port Gigabit L2+ Managed Switch

Description

TP-Link TL-SG3452 JetStream 48-Port Gigabit L2 Managed Switch with 4 SFP Slots
– Full Gigabit Ports: 48x gigabit RJ45 ports and 4x gigabit SFP Slots provide high-speed connections.
– Integrated into Omada SDN: Zero-Touch Provisioning (ZTP)*, Centralised Cloud Management, and Intelligent Monitoring.
– Centralised Management: Cloud access and Omada app for ultra convenience and easy management.
– Static Routing: Helps route internal traffic for more efficient use of network resources.
– Robust Security Strategies: IP-MAC-Port Binding, ACL, Port Security, DoS Defend, Storm control, DHCP Snooping, 802.1X, Radius Authentication, and more.
– Optimise Voice and Video Applications: L2/L3/L4 QoS and IGMP snooping.
– Standalone Management: Web, CLI (Console Port, Telnet, SSH), SNMP, RMON, and Dual Image bring powerful management capabilities

HARDWARE FEATURES
Interface
– 48x 10/100/1000 Mbps RJ45 Ports
– 4x Gigabit SFP Slots
– 1x RJ45 Console Port
– 1x Micro-USB Console Port
Fan Quantity Fanless
Power Supply 100-240 V AC~50/60 Hz
Dimensions ( W x D x H ) 17.3×8.7×1.7 in (440x220x44 mm)
Mounting Rack Mountable
Max Power Consumption 32.8 W (220 V/ 50 Hz)
Max Heat Dissipation 111.91 BTU/h (220 V / 50 Hz)

PERFORMANCE
Switching Capacity 104 Gbps
Packet Forwarding Rate 77.4 Mpps
MAC Address Table 16 K
Jumbo Frame 9 KB

SOFTWARE FEATURES
Quality of Service
– 8 priority queues
– 802.1p CoS/DSCP priority
– Queue scheduling
– SP (Strict Priority)
– WRR (Weighted Round Robin)
– SP+WRR
– Bandwidth Control
– Port/Flow based Rating Limiting
– Smoother
PERFORMANCE
– Action for Flows
– Mirror (to supported interface)
– Redirect (to supported interface)
– Rate Limit
– QoS Remark
