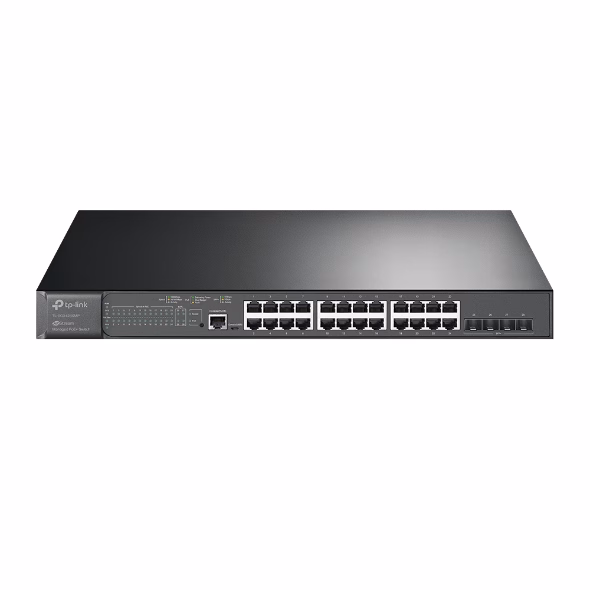

TP-Link SG3428XMP Omada 24-Port PoE+ Gigabit L2+ Managed Switch

Description

TP-Link TL-SG3428XMP JetStream 24-Port Gigabit and 4-Port 10GE SFP+ L2+ Managed Switch with 24-Port PoE+

– 10G Lightning-Fast Uplink: 4x 10 Gbps SFP+ slots enable high-bandwidth connectivity and non-blocking switching capacity.
– 384 W PoE Budget: 24x 802.3at/af-compliant PoE+ ports with a total power supply of 384 W*.
– Integrated into Omada SDN: Zero-Touch Provisioning (ZTP)**, Centralized Cloud Management, and Intelligent Monitoring.
– Centralised Management: Cloud access and Omada app for ultra convenience and easy management.
– Static Routing: Helps route internal traffic for more efficient use of network resources.
– Robust Security Strategies: IP-MAC-Port Binding, ACL, Port Security, DoS Defend, Storm control, DHCP Snooping, 802.1X, Radius Authentication, and more.
– Optimise Voice and Video Applications: L2/L3/L4 QoS and IGMP snooping.
– Standalone Management: Web, CLI (Console Port, Telnet, SSH), SNMP, RMON, and Dual Image bring powerful management capabilities

HARDWARE FEATURES
Interface
– 24x 10/100/1000 Mbps RJ45 Ports
– 4x 10G SFP+ Slots
– 1x RJ45 Console Port
– 1x Micro-USB Console Port
Fan Quantity 2
Power Supply 100-240 V AC~50/60 Hz
Dimensions ( W x D x H ) (440 x 330 x 44 mm)
Mounting Rack Mountable
Max Power Consumption 34.4 W (110V/60Hz) ( no PD device connected)
465.8 W (110V/60Hz) ( with 384 W PD device connected)
Max Heat Dissipation 117.38 BTU/h (110 V/60 Hz) (no PD device connected)
1589.31 BTU/h (110 V/60 Hz) (with 384 W PD device connected)

PERFORMANCE
Switching Capacity 128 Gbps
Packet Forwarding Rate 95.23 Mpps
MAC Address Table 16 K
Jumbo Frame 9 KB

Quality of Service
– 8 priority queues
– 802.1p CoS/DSCP priority
– Queue scheduling
– SP (Strict Priority)
– WRR (Weighted Round Robin)
– SP+WRR
– Bandwidth Control
– Port/Flow based Rating Limiting
– Smoother
PERFORMANCE
– Action for Flows
– Mirror (to supported interface)
– Redirect (to supported interface)
– Rate Limit
– QoS Remark
