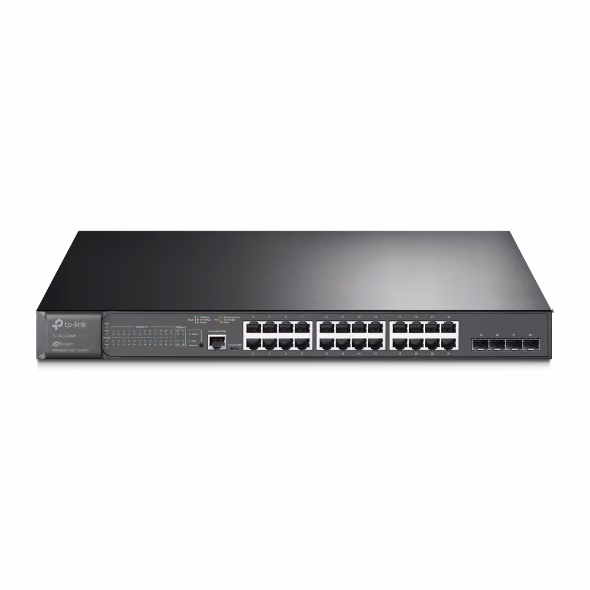

TP-Link SG3428MP Omada 28-Port PoE+ Gigabit L2+ Managed Switch

Description

TP-Link TL-SG3428MP JetStream 28-Port Gigabit L2 Managed Switch with 24-Port PoE+

– 384 W PoE Budget: 24x 802.3at/af-compliant PoE+ ports with a total power supply of 384 W*.
– Full Gigabit Ports: 24x gigabit PoE+ ports and 4x gigabit SFP Slots provide high-speed connections.
– Integrated into Omada SDN: Zero-Touch Provisioning (ZTP)**, Centralised Cloud Management, and Intelligent Monitoring.
– Centralised Management: Cloud access and Omada app for ultra convenience and easy management.
– Static Routing: Helps route internal traffic for more efficient use of network resources.
– Robust Security Strategies: IP-MAC-Port Binding, ACL, Port Security, DoS Defend, Storm control, DHCP Snooping, 802.1X, Radius Authentication, and more.
– Optimise Voice and Video Applications: L2/L3/L4 QoS and IGMP snooping.
– Standalone Management: Web, CLI (Console Port, Telnet, SSH), SNMP, RMON, and Dual Image bring powerful management capabilities

HARDWARE FEATURES
Interface
– 24x 10/100/1000Mbps RJ45 Ports
– 4x Gigabit SFP Slots
– 1x RJ45 Console Port
– 1x Micro-USB Console Port
Fan Quantity 2
Power Supply 100-240 V AC~50/60 Hz
PoE+ Ports(RJ45)
– Standard: 802.3at/af compliant
– PoE+ Ports: 24 Ports, up to 30 W per port
– Power Budget: 384 W
Dimensions ( W x D x H ) 17.3 x 13.0 x 1.7 in (440 x 330 x 44 mm)
Mounting Rack Mountable
Max Power Consumption
– 31.0 W (110 V/60 Hz) (no PD connected)
– 463.8 W (110 V/60 Hz) (with 384 W PD connected)
Max Heat Dissipation
– 105.78 BTU/h (110 V/60 Hz) (no PD connected)
– 1582.49 BTU/h (110 V/60 Hz) (with 384 W PD connected)

PERFORMANCE
Switching Capacity 56 Gbps
Packet Forwarding Rate 41.66 Mpps
MAC Address Table 8K
Jumbo Frame 9 KB
