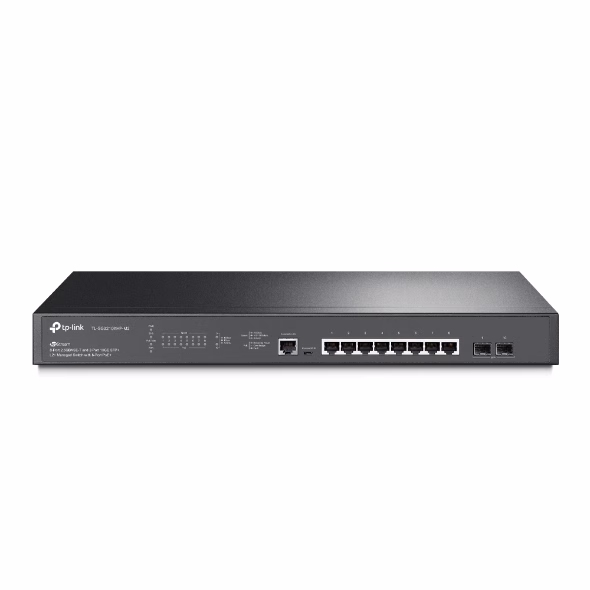

TP-Link SG3210XHP-M2 JetStream 8-Port 2.5GBASE-T and 2-Port 10GE SFP+ L2+ Managed Switch (Omada)

Description

TP-Link TL-SG3210XHP-M2 JetStream 8-Port 2.5GBASE-T and 2-Port 10GE SFP+ L2+ Managed Switch with 8-Port PoE+

– 2.5G PoE+ Ports for WiFi 6: 8x 2.5 Gbps ports smash the gigabit barrier and unlock the full potential of WiFi 6 APs.
– 10G Lightning-Fast Uplink: 2x 10 Gbps SFP+ slots enable high-bandwidth connectivity and non-blocking switching capacity.
– 240 W PoE Budget: 8x 802.3at/af-compliant PoE+ ports with a total power supply of 240 W*.
– Integrated into Omada SDN: Zero-Touch Provisioning (ZTP)**, Centralized Cloud Management, and Intelligent Monitoring.
– Centralised Management: Cloud access and Omada app for ultra convenience and easy management.
– Static Routing: Helps route internal traffic for more efficient use of network resources.
– Robust Security Strategies: IP-MAC-Port Binding, ACL, Port Security, DoS Defend, Storm control, DHCP Snooping, 802.1X, Radius Authentication, and more.
– Optimise Voice and Video Applications: L2/L3/L4 QoS and IGMP snooping.

HARDWARE FEATURES
Interface
– 8x 100/1000/2500 Mbps RJ45 Ports
– 2x 10G SFP+ Slots
– 1x RJ45 Console Port
– 1x Micro-USB Console Port
Fan Quantity 2
Power Supply 100-240 V AC~50/60 Hz
Dimensions ( W x D x H ) 17.3 x 7.1 x 1.7 in (440 x 180 x 44 mm)
Mounting Rack Mountable
Max Power Consumption 17.24 W (110V/60Hz) (no PD connected)
291.49 W (110V/60Hz) (with 240 W PD connected)
Max Heat Dissipation 58.82 BTU/h (110 V/60 Hz) (no PD connected)
994.56 BTU/h (110 V/60 Hz) (with 240 W PD connected)

PERFORMANCE
Switching Capacity 80 Gbps
Packet Forwarding Rate 59.52 Mpps
MAC Address Table 16 K
Jumbo Frame 9 KB
