Fanvil i507W Indoor SIP Station

Description

Fanvil i507W Android Indoor Station

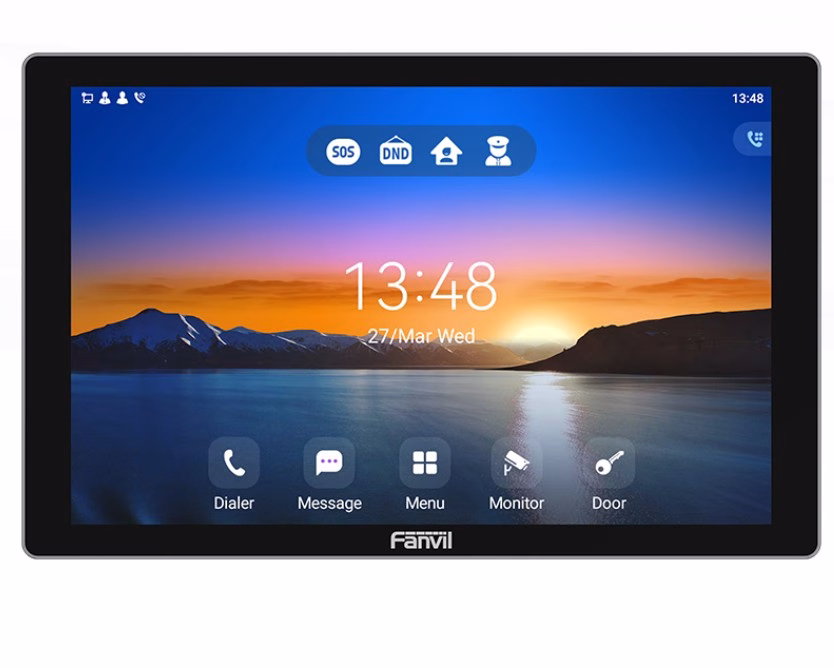

The Fanvil i507W is a powerful and stylish 10.1-inch indoor station designed for modern smart buildings, residential communities, villas, and hotels. With its Android 9.0 operating system and intuitive touch interface, it offers seamless integration with third-party applications and security systems, delivering a safe, connected, and convenient user experience.

Key Features:

• 10.1-inch color IPS capacitive touchscreen (1280×800 resolution)
• Built-in 2W speaker with Acoustic Echo Cancellation (AEC) for high-quality two-way hands-free communication
• Real-time video monitoring from third-party IP cameras and door phones
• Rich I/O interfaces for integrating alarm sensors, doorbells, and automation systems
• Supports PoE (802.3af) or 12V DC power supply
• Android 9.0 OS for stable performance and support for third-party app installation

Specifications:

• Panel Type: Suitable for community, hotel, and villa environments
• Body Material: ABS
• Wi-Fi: Dual-band 2.4G/5G
• Interfaces: 8xAlarm input, 1xShort circuit output, 1xDoorbell input, 1xRS485 (reserved)
• Network: 10/100 Mbps adaptive Ethernet
• Power Consumption: PoE: 2.99~8.64W, Adapter: 2.64~7.18W
• Operating Temperature: -10? to 50?
• Storage Temperature: -40? to 80?
• Humidity: 10%~90%
• Dimensions: 247.96 x 156.96 x 25.6 mm
• Installation: Wall-mounted

Functional Capabilities:

• Protocols: SIP 2.0 over UDP/TCP/TLS
• Audio Codecs: G.711A/U, G.729AB, iLBC, G.722, OPUS
• Video Codecs: H.264, H.265 (optional)
• Video Resolution: QVGA, CIF, VGA, 4CIF, 720P, 1080P
• DTMF: In-band, RFC2833, SIP Info
• Do Not Disturb (DND): Supported with user-defined timing
• Additional Features: Remote door unlocking, message sending/receiving, customizable ringtones, third-party app support
